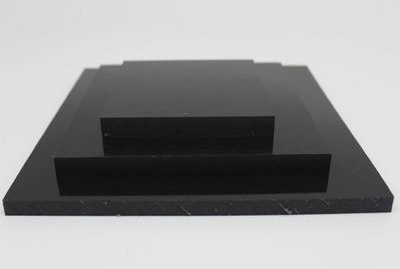

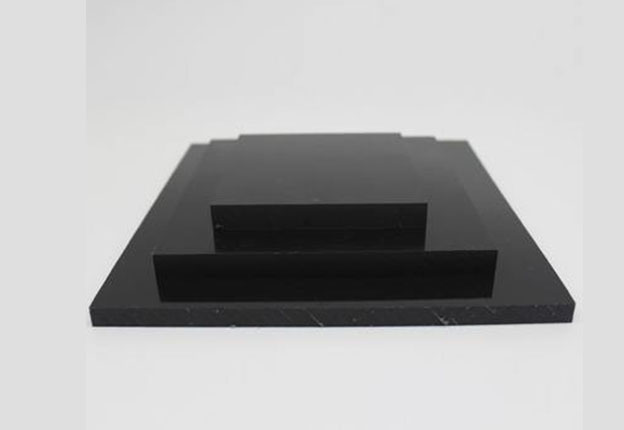

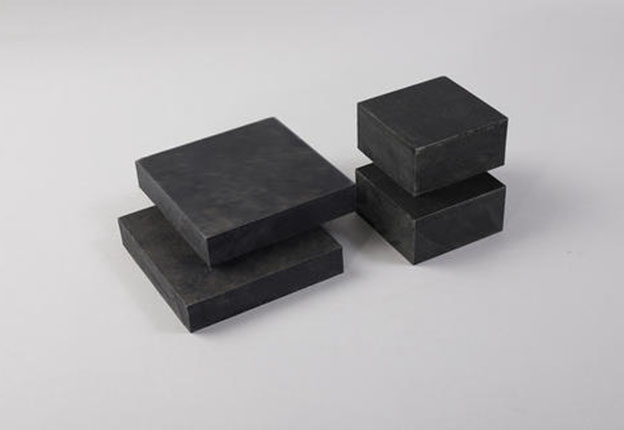

Anti-static UHMWPE Sheet
Anti-Static UHMWPE Sheet
Complete specifications can be customized
Thickness: 5-200mm
Length and width: 1220×2440mm 2000×1500mm
4000 x 1500 mm 3000 x 1500 mm
Other specifications can also be customized
Jinhang plastics has been focusing on the R & D and manufacturing of anti-static UHMWPE sheet for 11 years. We have accumulated rich experience in raw material use, process methods and other aspects. The factory direct selling mode has no intermediate links. Quality assurance, reject fake and inferior products!
Anti-Static UHMWPE Sheet is suitable for coal, mining, machinery and other industries silo, hopper, mechanical parts or other anti-static, explosion-proof and other places.
Anti-static UHMWPE sheet is made of polyethylene resin as the base material, conductive materials are added, graded and mixed, and made of high temperature and high pressure.In addition to retain the basic properties of polymer polyethylene, at the same time has an excellent electrostatic elimination function.
Excellent product performance
| erial number | project | Company | index |
| 1 | Surface resistance | Ohm/m2 | 106—108 |
| 2 | Volume resistivity | 0hm-cm3 | ＞1015 |
| 3 | mpact strength (no notch) | KJ/m³ | ≥130 |
| 4 | ball indentation hardness | N/mm³ | ≥28 |
| 5 | bending strength | MPa | ≥26 |
| 6 | tensile strength | MPa | ≥19 |
| 7 | elongation at break | ％ | ≥100 |
| 8 | density | G/cm³ | 0.96-1 |
| 9 | Water absorption | ％ | ≤0.01 |
| 10 | friction coefficient | ≤0.19 | |
| 11 | Wear loss | g | ≤0.015 |
| 12 | Hot deformation temperature (0.46mpa) | ℃ | ≤85 |
| 13 | Expansion coefficient | 1/℃ | ≤0.07 |
They＇re all using this product：
