OVERVIEW

• 1) Super high wear resistance: wear resistance is 8-10 times that of carbon steel.
• 2) superior impact resistance: impact resistance, smash resistance, strength up to more than 130KJ/㎡.
• 3) Good non-stickiness: non-stickiness with most powder, block, mud and other materials.
• 4) excellent corrosion resistance: corrosion resistance of all kinds of acid and alkali.

“To create ultra-high products, achieve customer value, from the market research, product design, sample testing, customer feedback of every detail we do the best. Focus on ultra high product we pursue the ultimate accuracy.”

1.Optimize raw materials with high quality and optimize process

• Preferred famous raw materials such as Tycona,Mitsui and Jiujing

• New advanced CNC hot pressing and calendering process



2.More durable,longer life and cost saving

• Excellent product performance,service life of more than10 years

• Safe and stable operation,high efficiency,energy saving and environmental protection



3.High cost performance and large-scale production,low unit cost

• Two big bases,large-scale production,low unitcost

• Prices are 20% lower than peers



“To create UHMWPE products,Jinhang intorduced and absorbed German technology, and independently develiped ultra-high board, bar, profile and other productes, truly compare with similar fordign pruducts, reach the intertional peer level, is the comprehensive cost-sffective procurement choice.”

Jinhang Engineer

APPLICATION

This product is widely used in the following industries

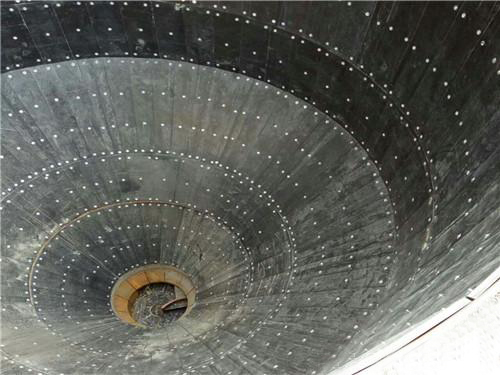

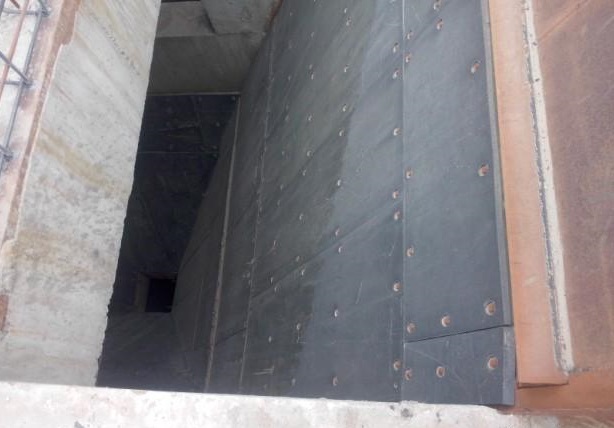

(1) in metallurgy,power, coal, shipbuilding, meat and other industries, the use of coal bunker liner impact resistance, wear resistance, non-adhesion and self-lubrication.

(2)in the paper industry, the use of coal bunker liner wear resistance.

(3) in the textile industry, the use of coal bunker liner impact resistance and wear resistance.

(4) in the machinery industry, the use of coal bunker liner wear resistance, impact resistance and self-lubrication……

TECHNICAL SPECIFICATION

The serialnumber projiect unit The test method indicators
1 Molecular weight(viscosity method) ×10 With reference to astmd4020GB1841-80-81 200-900.
2 The impact strength KJ/m2 GB/T1043.1-2008 P 130
3 The bending strength MPa GB/T9341-2008 or higher
4 The compression strength MPa GB/T1041-2008 P 35
5 Ball indentation hardness N/mm2 GB/3398.1-2008 40 or higher
6 The density of G/cm after GB/T1033.1-2008 0.96-1
7 The coefficient of friction GB/T3960-2008 0.11-0.19
8 Bibulous rate % GB/T1034-2008 0.01 or less
Note: Our company in the spirit of continuous progress, if the above parameters are changed, in the permise of not affecting the quality, we will not inform you

INSTALL

We have 6 construction teams with years of experience ,which can provide coal bunker liner plate installation service for you anytime.
