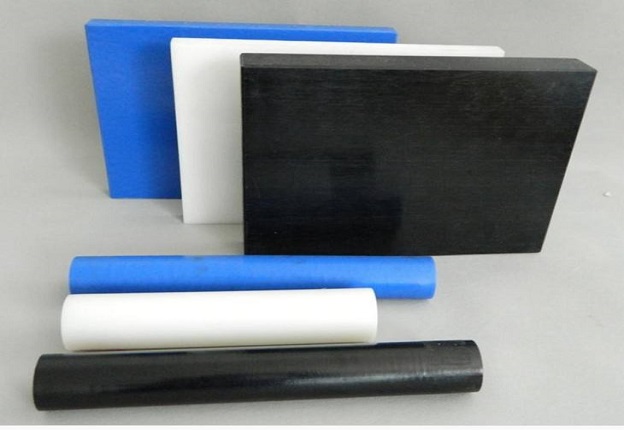

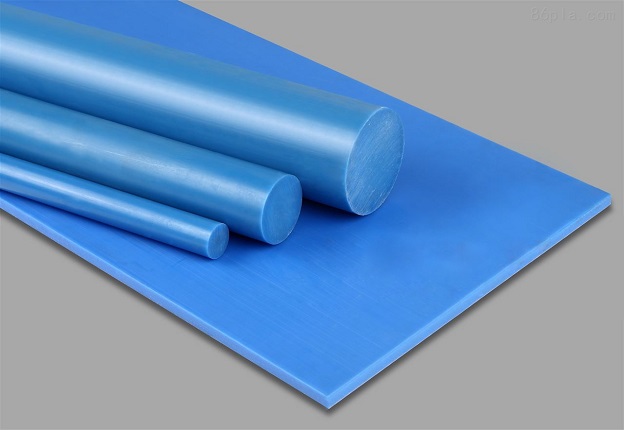

UHMWPE Rod
Henan Jinhang, a professional UHMWPE rod manufacturer for 11 years, has the right of import and export. Imported European advanced technology, equipped with large-scale automatic control of UHMWPE rod extrusion equipment.
Over the years, our tenet is “high quality products, reasonable price and considerate service“. So far, more than 1300 customers in more than 30 countries and regions have chosen our products. We are proud of it.
UHMW PE is an engineering plastic with excellent comprehensive performance. It is made of pure new UPE resin and made by large-scale automatic control extrusion equipment. It is an ideal bar material for high performance plastic parts such as wear resistance and corrosion resistance. The UHMWPE rod has the following excellent properties:
★ Superior machining performance
★ Very good wear resistance
★ High impact strength
★ Good mechanical strength and rigidity
★ Ultra low water absorption
★ Excellent non stickiness
★ Superior chemical resistance
★ Good anti high energy radiation performance (gamma-and X-ray)
★ Good dielectric and electrical insulation
| The serialnumber | projiect | unit | The test method | indicators |
| 1 | Molecular weight(viscosity method) | ×10 | With reference to astmd4020GB1841-80-81 | 200-900. |
| 2 | The impact strength | KJ/m2 | GB/T1043.1-2008 | P 130 |
| 3 | The bending strength | MPa | GB/T9341-2008 | or higher |
| 4 | The compression strength | MPa | GB/T1041-2008 | P 35 |
| 5 | Ball indentation hardness | N/mm2 | GB/3398.1-2008 | 40 or higher |
| 6 | The density of | G/cm after | GB/T1033.1-2008 | 0.96-1 |
| 7 | The coefficient of friction | GB/T3960-2008 | 0.11-0.19 | |
| 8 | Bibulous rate | % | GB/T1034-2008 | 0.01 or less |
| Note: Our company in the spirit of continuous progress, if the above parameters are changed, in the permise of not affecting the quality, we will not inform you | ||||
(1) In the machinery industry, the wear resistance, impact resistance and self lubrication of UHMWPE rod are mainly used. The main products are various sliding blocks, shaft sleeves, pin shafts, gears, cams, impellers, etc.
(2) In the fluid transportation industry, the wear resistance and corrosion resistance of UHMWPE rod are mainly used. The main products are pump impeller, density pad and so on.
(3) In the textile industry, the impact resistance and wear resistance of UHMWPE rods are mainly used. The main products are various skin knots, gears, cotton rolls, cuttings and so on.
(4) In the ceramic industry, the wear resistance and non adhesion of UHMWPE rods are mainly used. The main products are various specifications of rolling head filter blocks, wheels and so on.
(5) In the beverage light industry, the wear resistance, impact resistance, self-lubricating and non-toxic properties of UHMWPE rods are mainly used. The main products are various gears, cams, guide rails and guide bars.
Because of its comprehensive properties, UHMWPE rods can cover almost all parts made of plastic instead of steel.
Since its establishment 11 years ago, we have over 1300 customers in more than 30 countries and regions, including some of the world’s top 500 and China’s top 300. We are proud of this. At the same time, we also know how to be grateful to our customers. In the future, we will work harder to serve more domestic and foreign customers.
